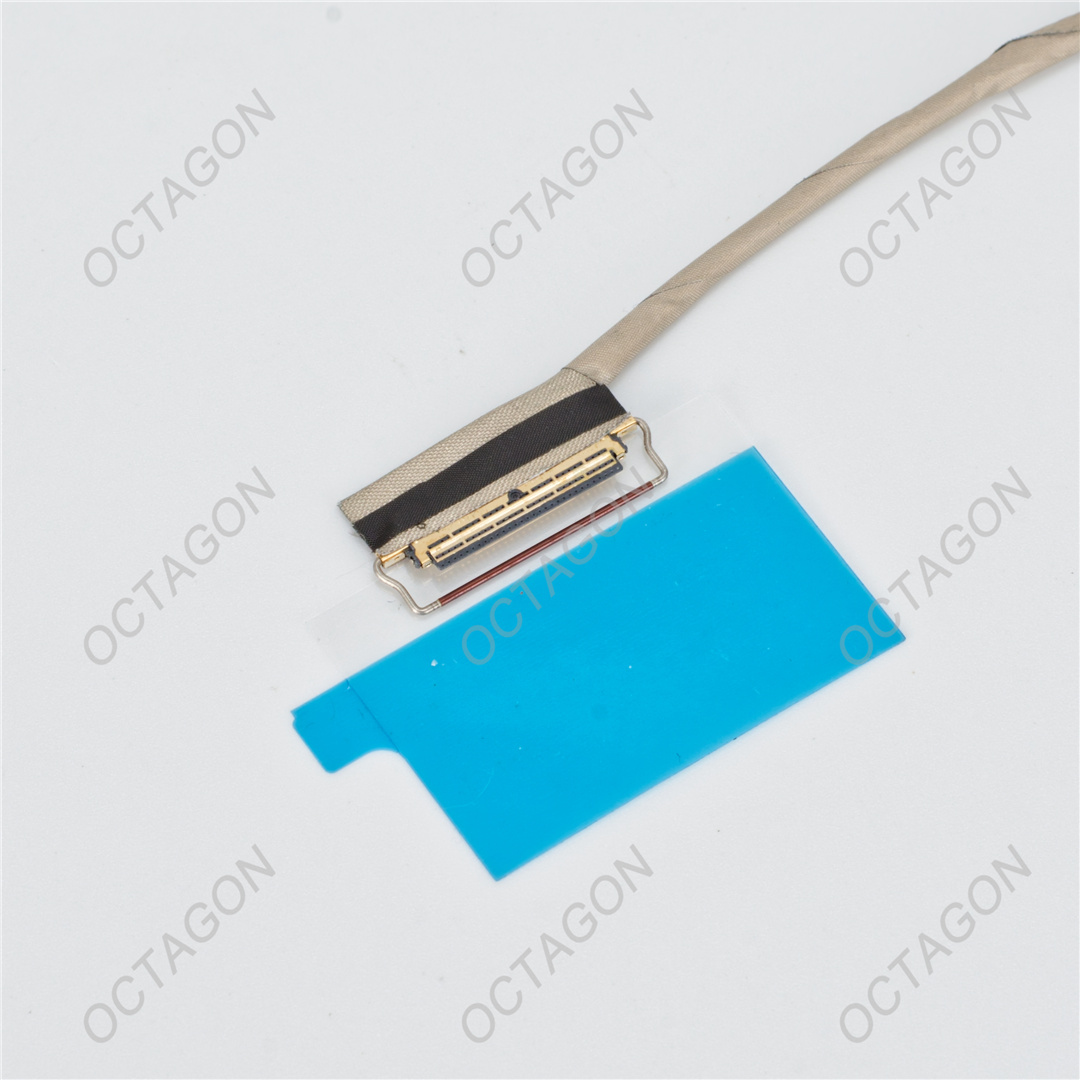

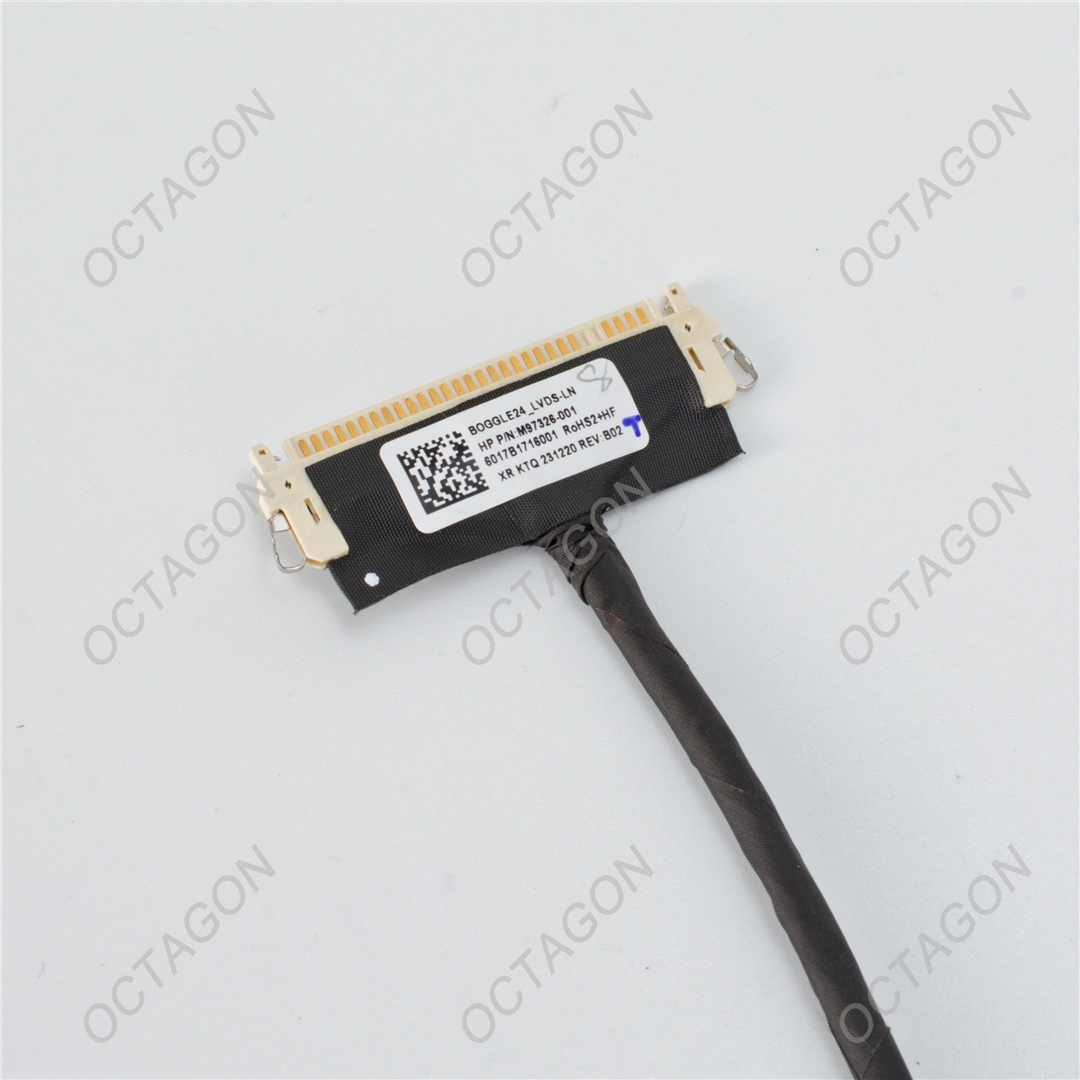

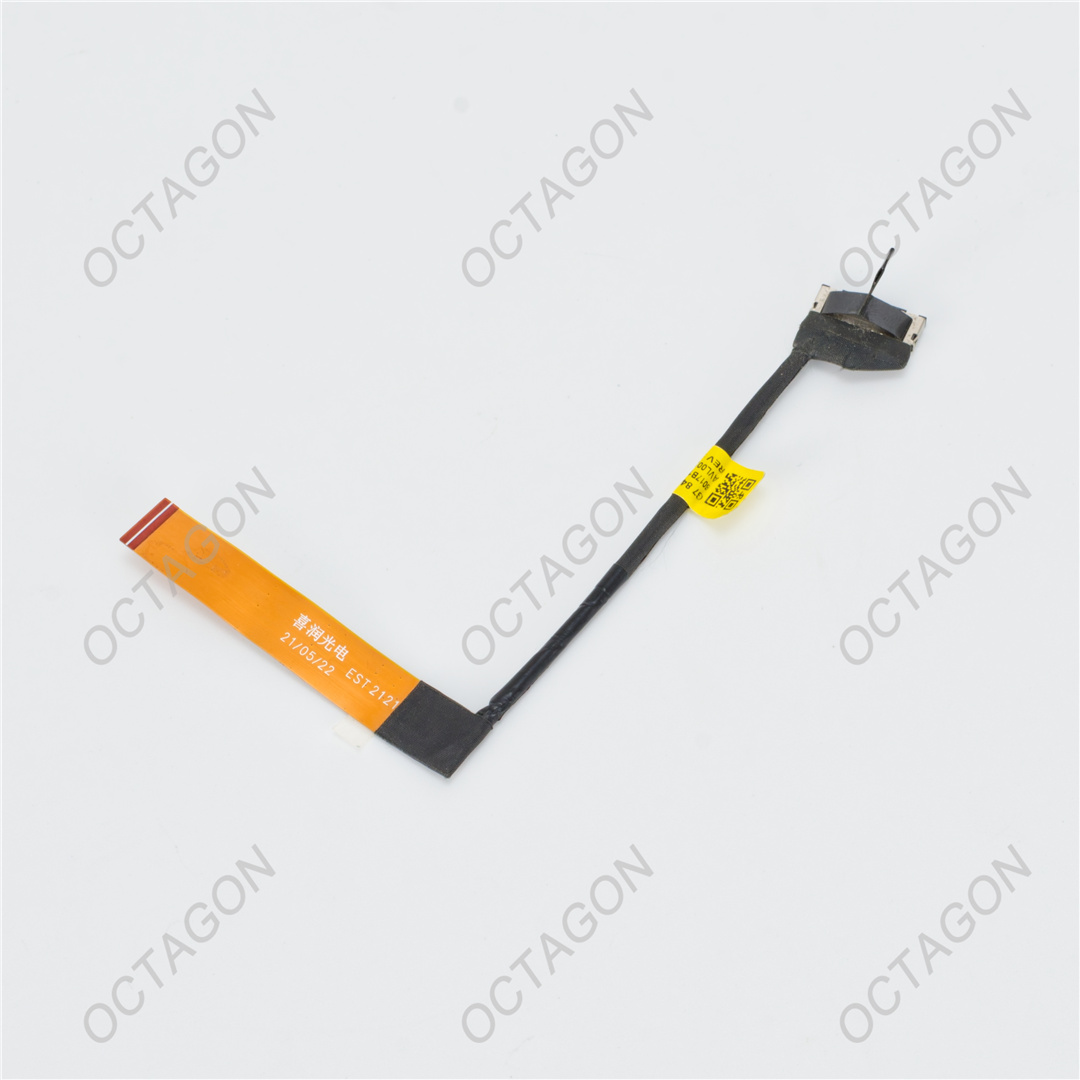

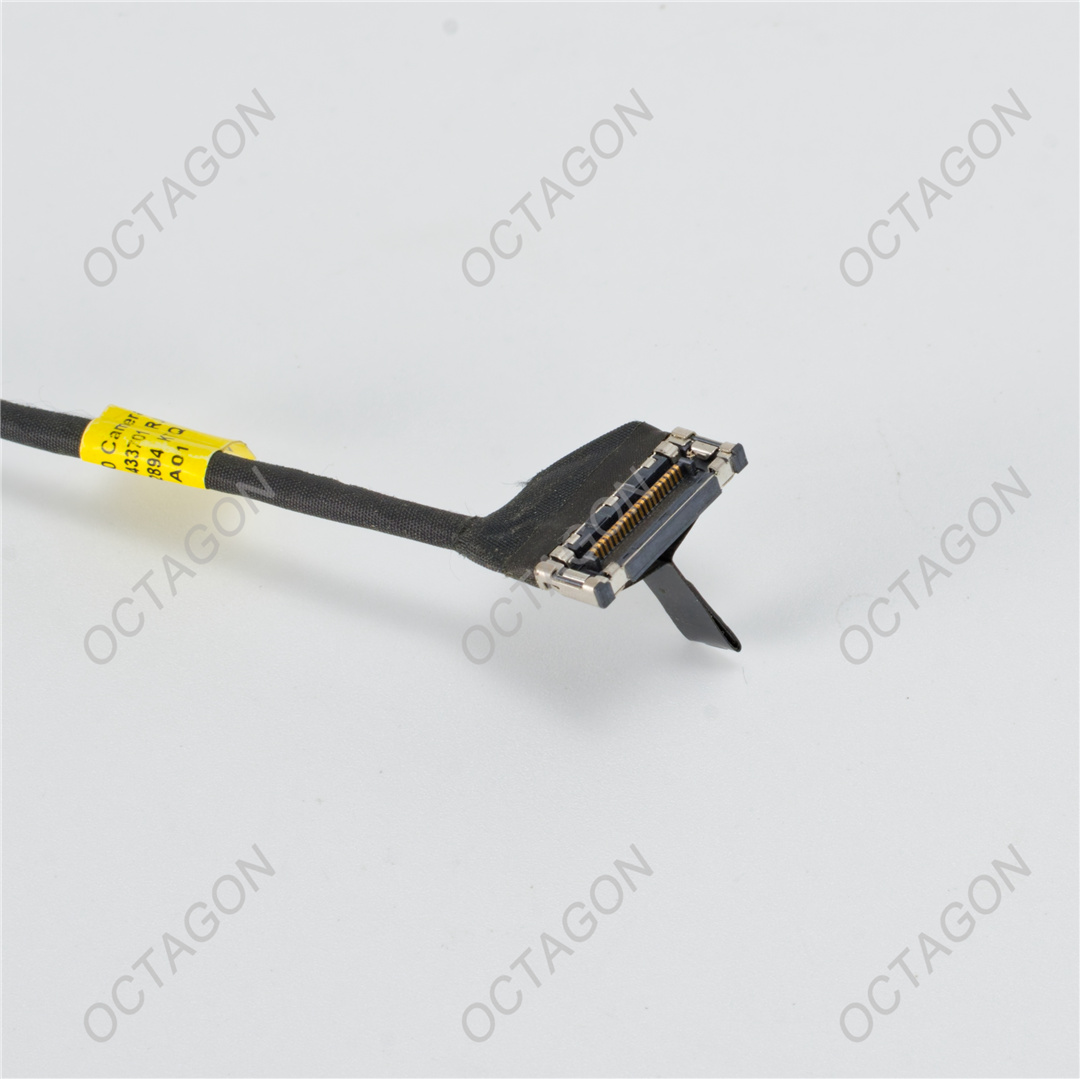

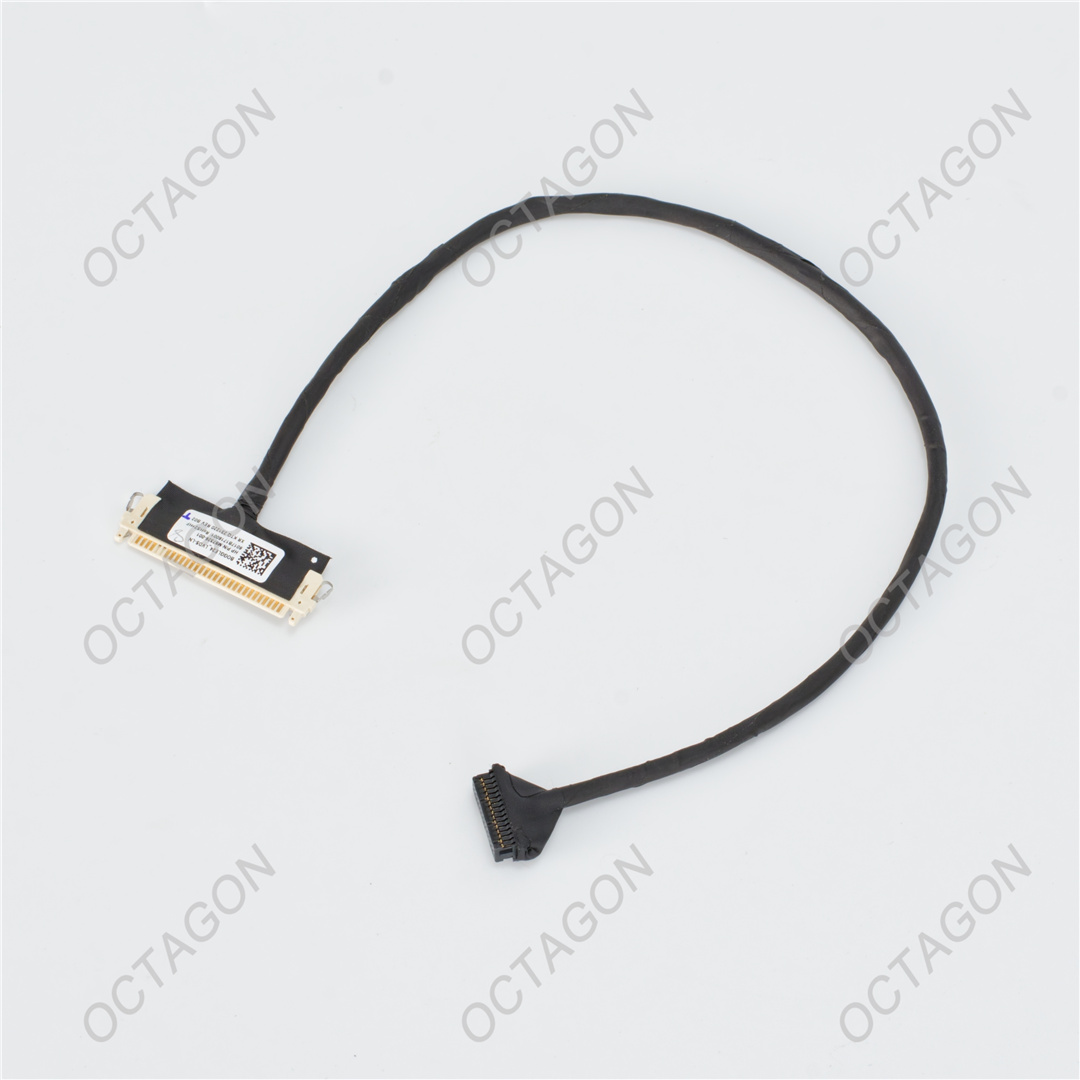

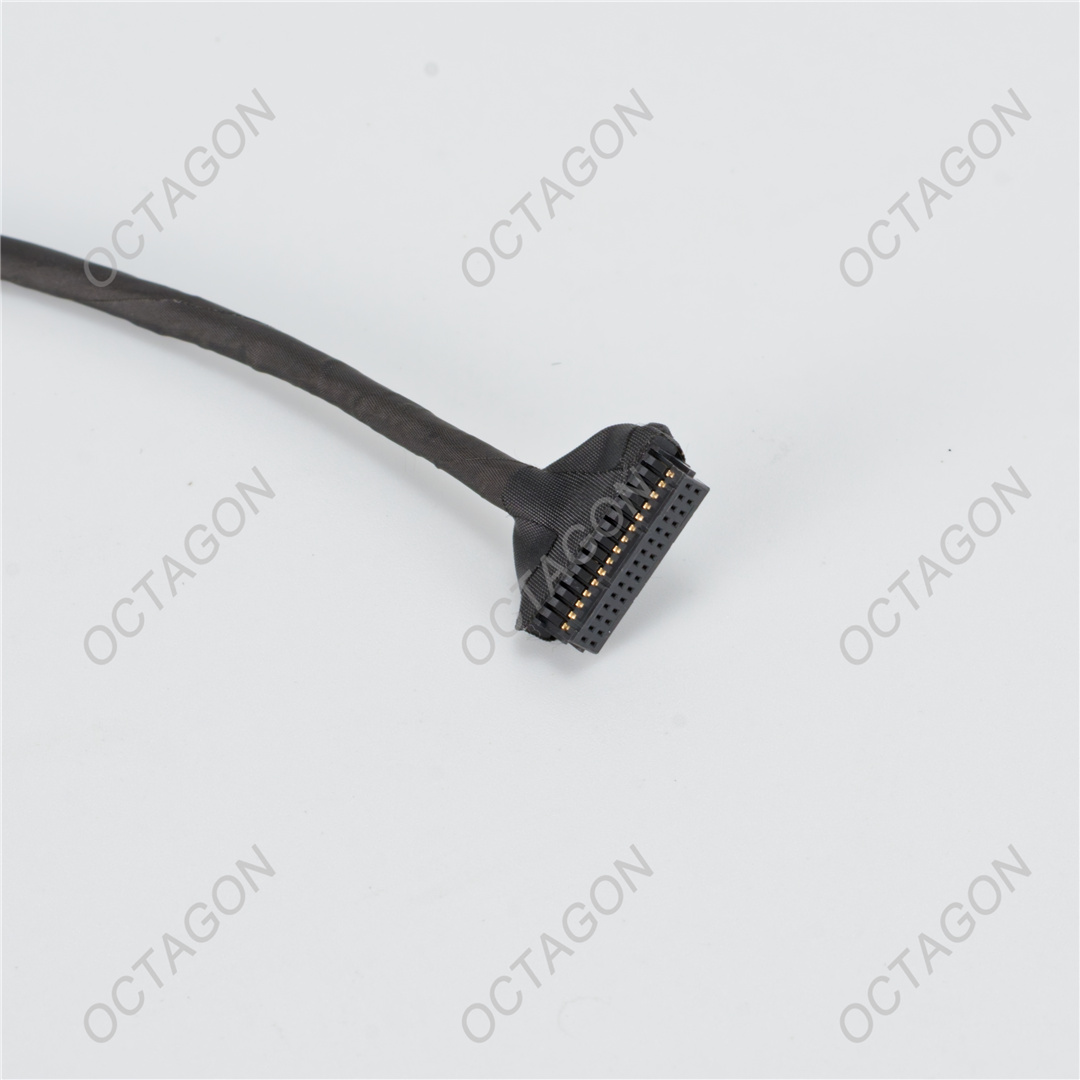

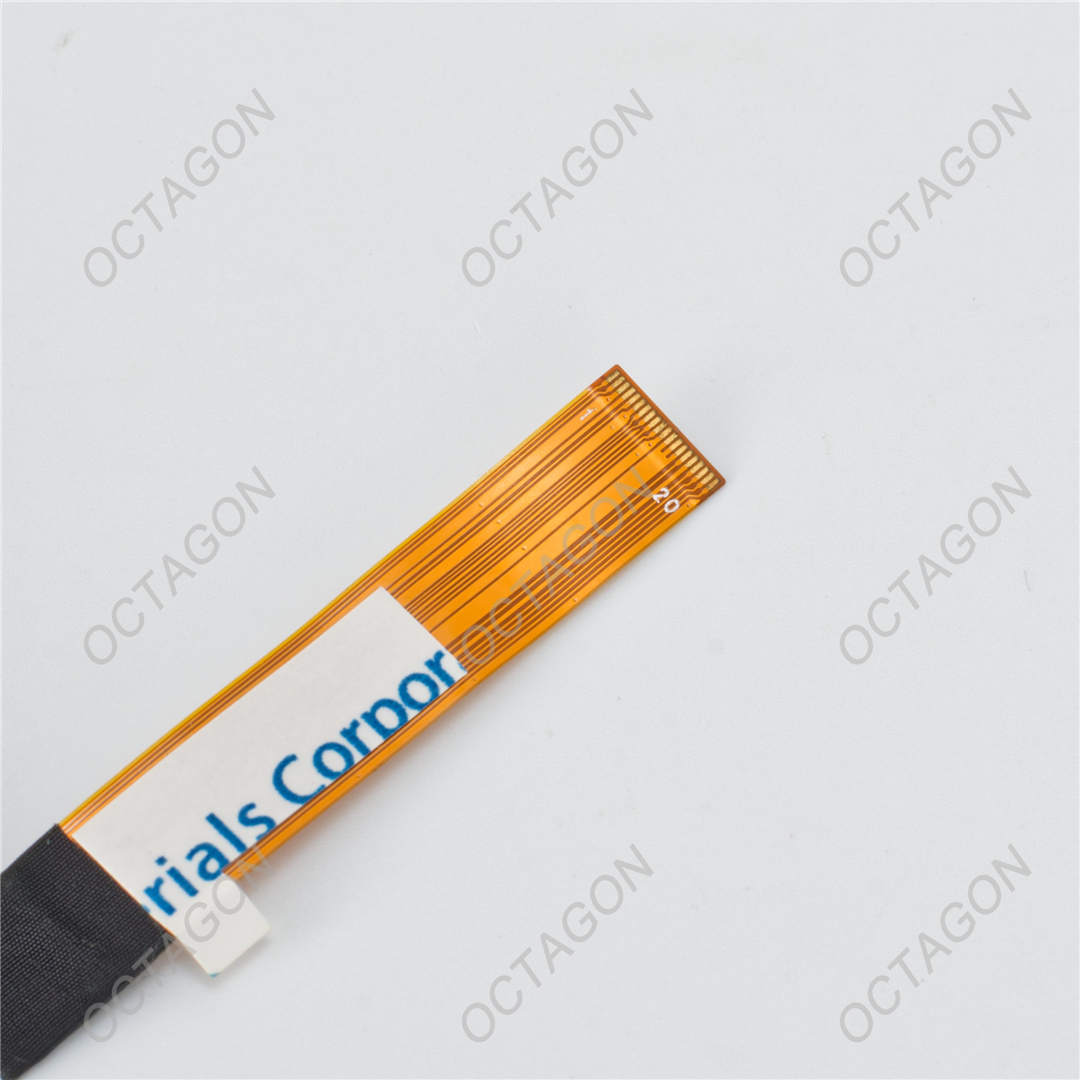

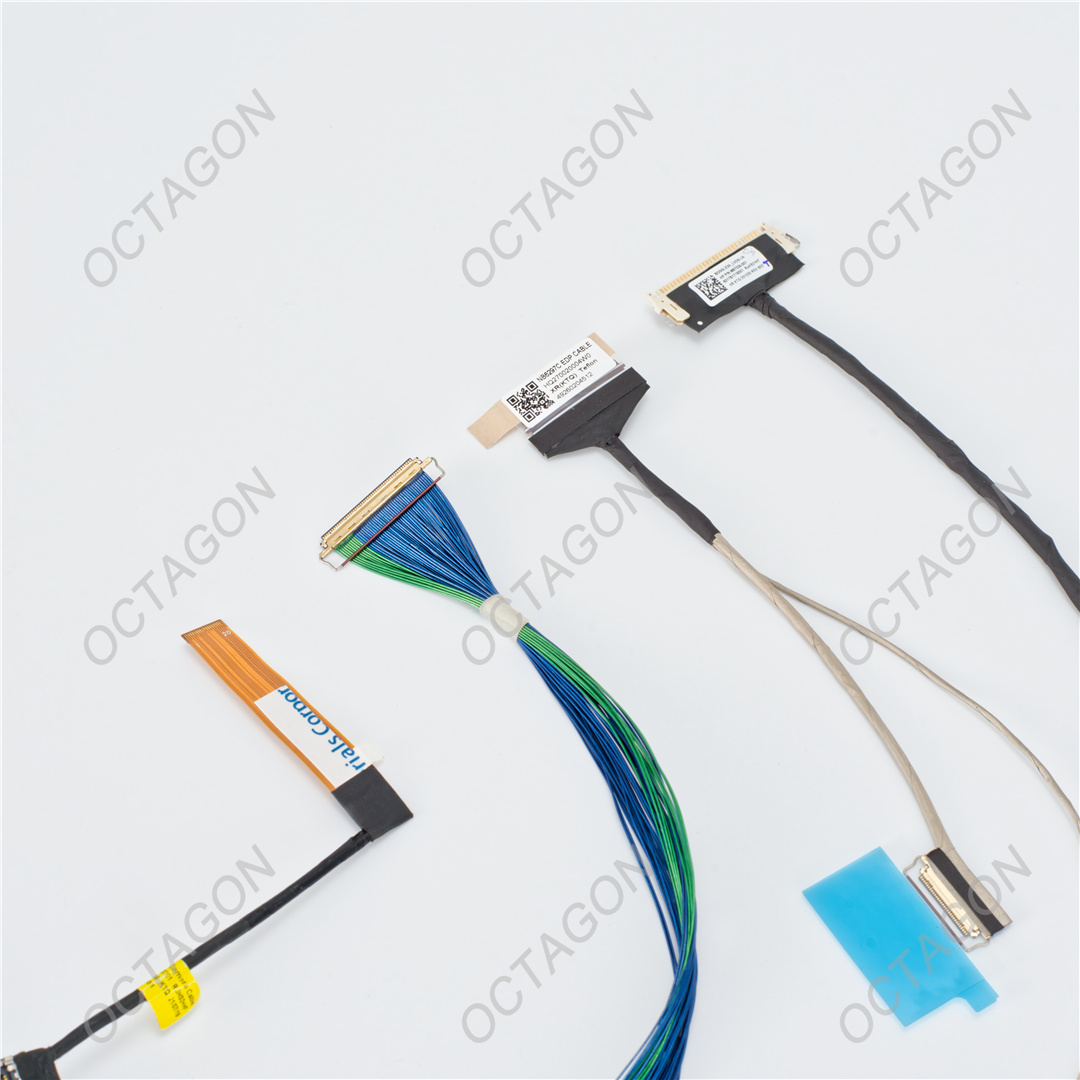

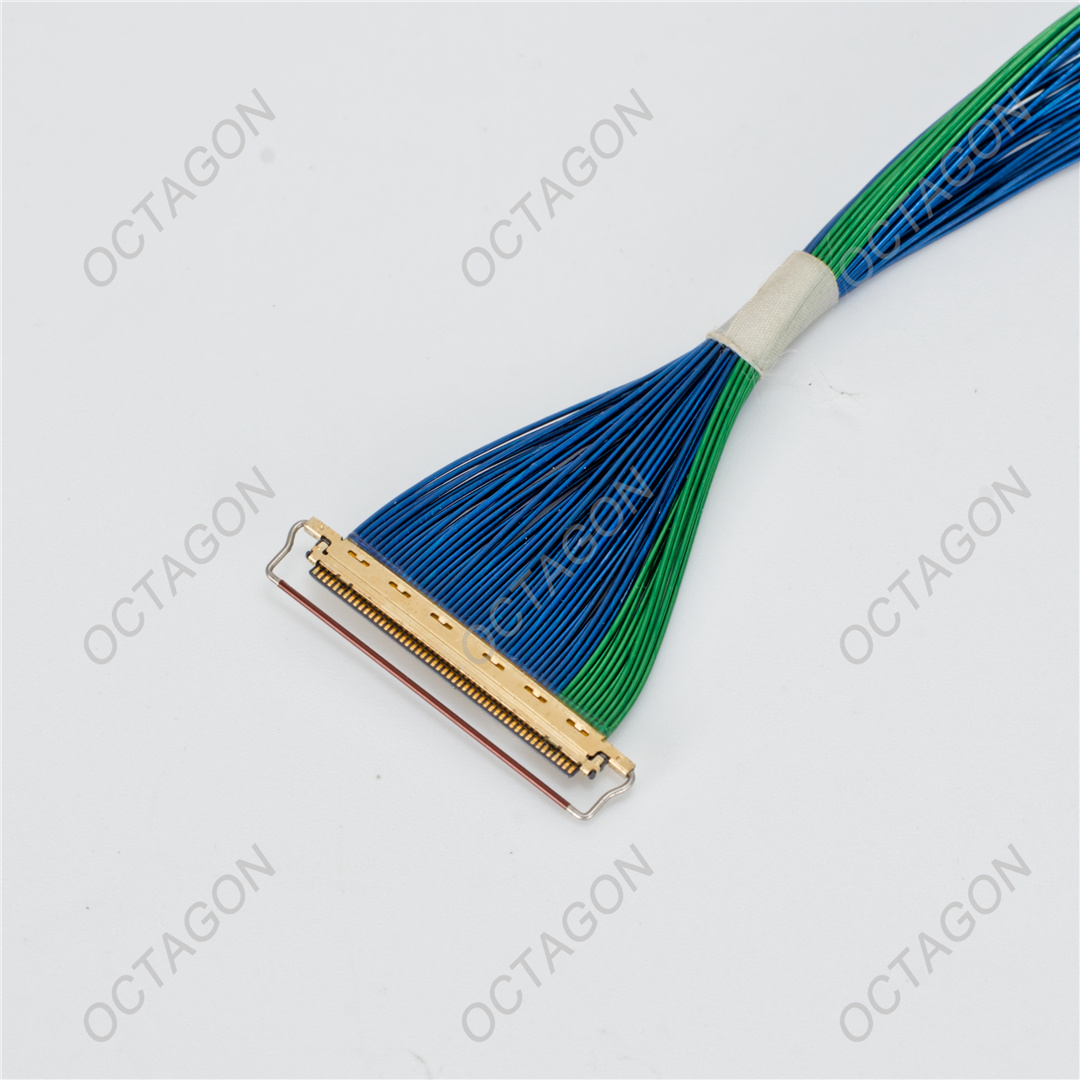

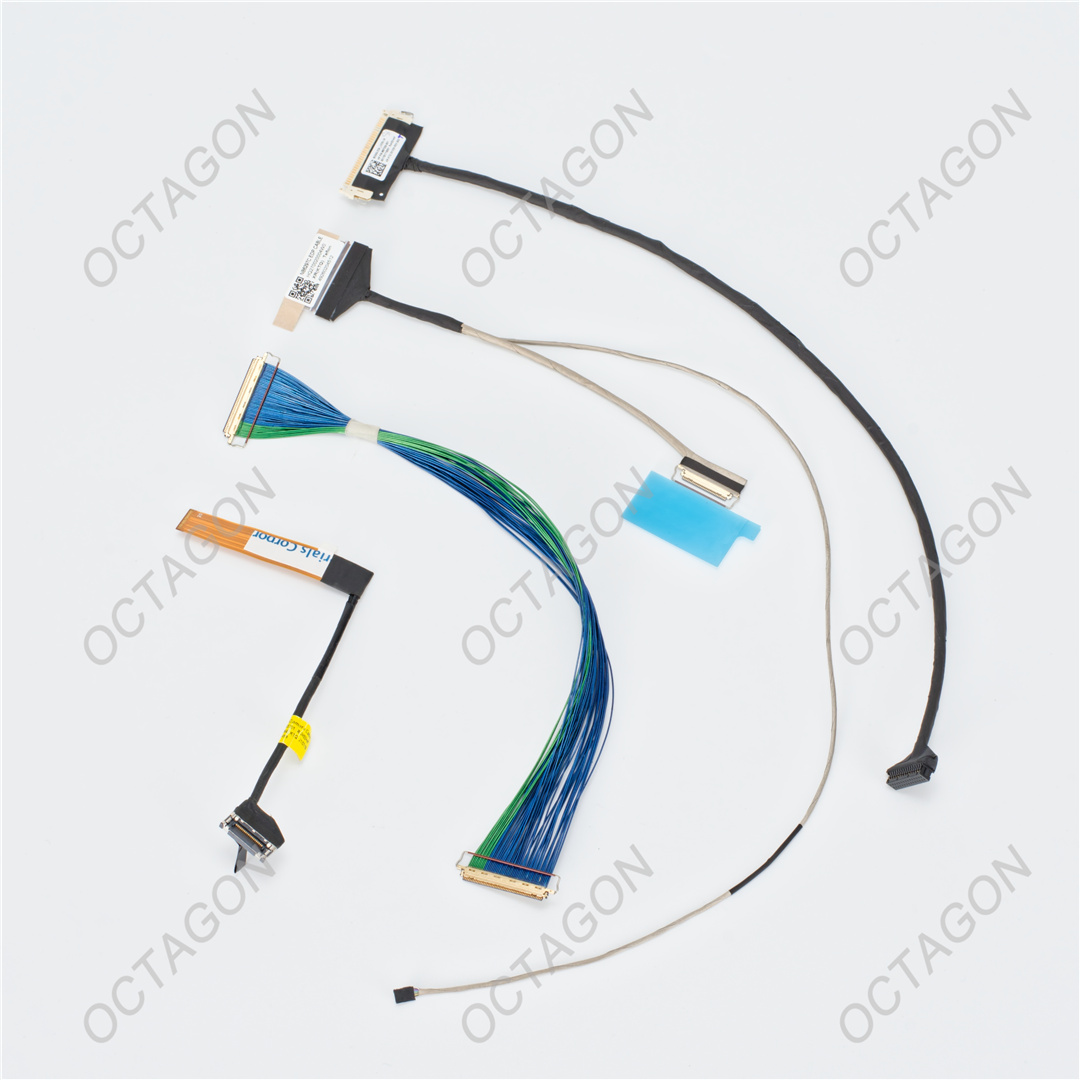

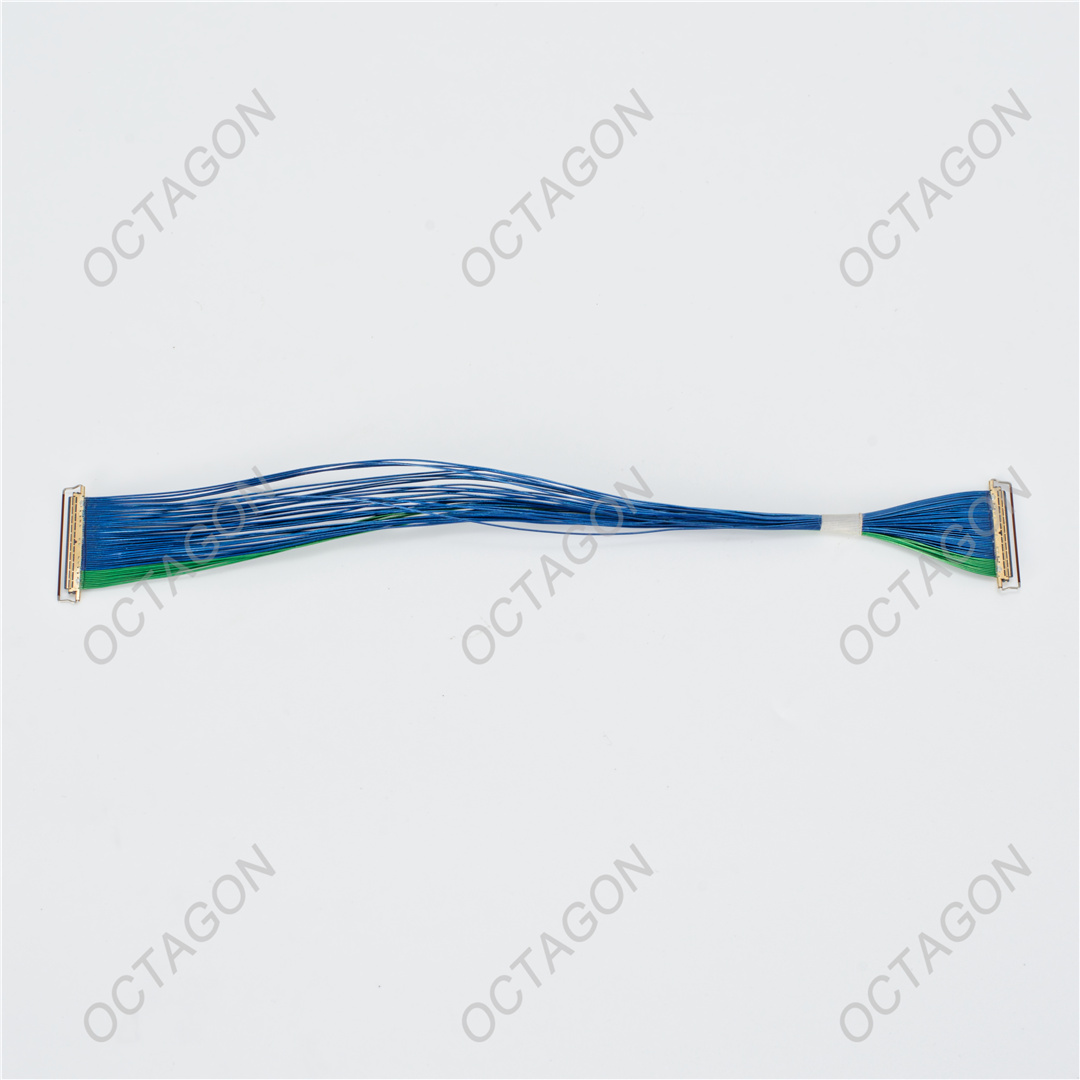

High-Definition Screen Connection Cable harness
Structural & Material Performance
Coaxial Wire Cores: Each wire core is made from high-purity conductors, such as oxygen-free copper or silver-plated copper, which ensures low resistance and high conductivity for optimal signal transmission.
Precision Insulation Layer: The insulation is crafted from polyethylene or fluoroplastic, providing impedance matching to enhance signal integrity.
Multi-Layer Shielding: The harness features dual shielding with aluminum foil and copper mesh, effectively protecting against electromagnetic interference (EMI) and crosstalk, which can degrade signal quality.
Integrated Outer Jacket: Made from durable materials like PVC or FEP, the outer jacket is temperature-resistant and abrasion-resistant, ensuring longevity and reliability in various environments.
Multi-Core Integration: This design balances signal independence and compact wiring, allowing for efficient space utilization while maintaining performance.
Functional Performance
High-Frequency Signal Fidelity: The harness supports LVDS and eDP standards, minimizing signal attenuation and ensuring clear images on high-definition screens.
Strong Anti-Interference: The design effectively suppresses EMI, preventing screen flickering and distortion, which is crucial for maintaining visual clarity.
Outstanding Reliability: Built to withstand environmental challenges, the harness ensures stable long-term operation, making it suitable for both consumer and industrial applications.
Product Certification
The High-Definition Screen Connection Cable Harness is UL certified, ensuring compliance with safety and performance standards, which provides customers with confidence in the product’s quality and reliability.
Customization Services
We offer tailored wire harness solutions based on specific customer needs, including:
Screen Size Adjustments: Custom solutions to fit various high-definition screen sizes.
Resolution Compatibility: Ensuring the harness meets the requirements for different screen resolutions.
Connector Specifications: Customizable terminal types to match various interface specifications.
Wire Core Count and Length: Adjustable wire core numbers and harness lengths to meet different installation requirements for high-definition screen devices.
