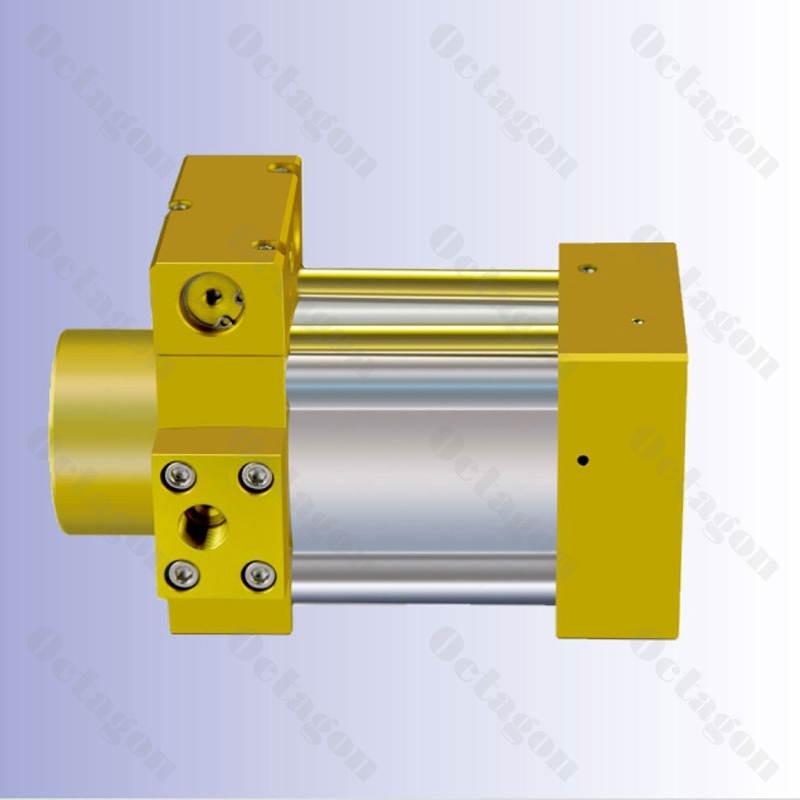

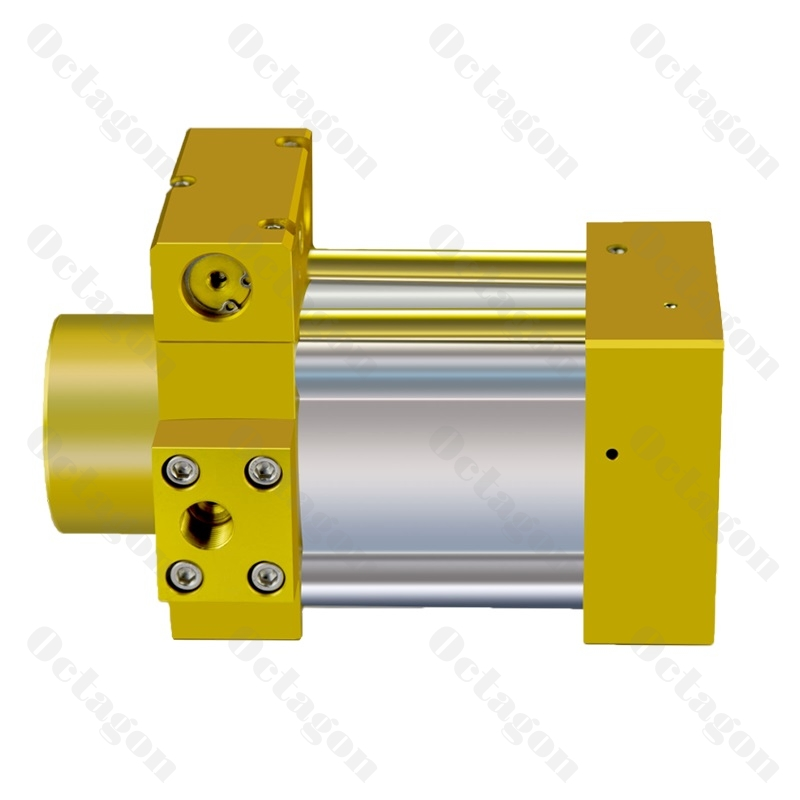

Octagon SWB-80S Series Gas-Liquid Booster Pump

The Octagon SWB-80S series is a single-drive head, single-acting gas-liquid booster pump designed for efficiency and versatility. With a drive piston diameter of 80mm and operating pressure up to 8 bar, this pump is engineered to meet a wide range of industrial and outdoor applications.

Model SWB-80S

Good quality creates good products

Easy to operate

Excellent sealing

Stable structure

Key Features

.Portable Design: The lightweight construction of the SWB-80S makes it easy to transport, making it ideal for outdoor operations.

.No Electricity Required: This pump operates without electrical power, allowing safe use in flammable and explosive environments.

.Multiple Gas Drive Options: The SWB-80S can be powered by various gases, including compressed air and helium, providing flexibility in different working conditions.

.High Flow and Pressure: The pump delivers high flow rates and output pressure, ensuring optimal performance for demanding applications.

.Wide Applicability: Suitable for hydraulic oil, pure water, chemical solvents, and liquid CO2, the SWB-80S can handle a vast majority of liquids.

.User-Friendly and Low Maintenance: Designed for ease of use and simple maintenance, reducing operational costs and downtime.

Application Scenarios

The Octagon SWB-80S series gas-liquid booster pump is ideal for various industries and applications, including:

Construction and Site Work: Perfect for hydraulic equipment oil supply at outdoor construction sites.

Chemical Industry: Efficiently handles the transfer and boosting of chemical solvents.

Oil and Gas: Used for boosting and transferring liquid CO2 in oil fields and gas extraction.

Laboratories and Research: Supports various liquid boosting needs in laboratory environments.

Emergency Response: Its non-electric operation makes it suitable for emergency rescue operations in hazardous conditions.

Choose the Octagon SWB-80S series gas-liquid booster pump for a reliable, efficient, and safe solution to your pumping needs.

Technical Parameters

Model	Boost ratio	Outlet pressure (bar)	Single - shot Discharge Volume (ml/cycle)	Interface size
Model	Boost ratio	Outlet pressure (bar)		Drive port	Inlet	Outlet
SWB-80S-10	10:1	80	20.6	ZG1/4	ZG3/8	ZG3/8
SWB-80S-16	16:1	128	13.1	ZG1/4	ZG3/8	ZG3/8
SWB-80S-25	25:1	200	8.4	ZG1/4	ZG3/8	ZG3/8
SWB-80S-32	32:1	256	6.4	ZG1/4	ZG3/8	ZG3/8
SWB-80S-44	44:1	352	4.7	ZG1/4	ZG3/8	ZG3/8
SWB-80S-64	64:1	512	3.3	ZG1/4	ZG3/8	ZG3/8
SWB-80S-100	100:01:00	800	2.1	ZG1/4	ZG3/8	ZG3/8
