Octagon SWP-7.5 Air Booster Pump: Revolutionizing Industrial Performance

Convenient and Efficient, Outstanding Performance

The Octagon SWP-7.5 Air Booster Pump opens the door to convenience in industrial operations. It requires no external power supply and relies solely on compressed air as its power source to easily achieve air pressure boosting. Its unique design allows the outlet pressure to reach 2 to 5 times the inlet pressure, effortlessly meeting your higher pressure demands. Additionally, by simply adjusting the inlet pressure, you can precisely obtain the desired pressure value, making operation straightforward and significantly enhancing work efficiency.

  • Model SWP-7.5
Good quality creates good products

Good quality creates good products

Easy to operate

Easy to operate

Excellent sealing

Excellent sealing

Stable structure

Stable structure

Intelligent Energy-Saving, Environmentally Reliable

This product features an automatic pressure-holding function, showcasing its intelligence and energy-saving characteristics. When the outlet pressure reaches the preset value, the air booster pump automatically stops working, effectively preventing energy waste. Conversely, when the outlet pressure falls below the preset value, it automatically replenishes the pressure, maintaining a stable pressure output at all times. During the pressure-holding process, there is no additional energy consumption, making it both environmentally friendly and energy-efficient, reducing operational costs for enterprises while contributing to green industry efforts.

Safety Assurance, Widely Applicable

The Octagon SWP-7.5 operates using a gas-driven method, producing no electric arcs or sparks during operation. This feature allows it to operate safely in hazardous environments where flammable or explosive gases are present, providing solid safety assurance for your production operations. It is widely applicable in various complex industrial scenarios that require high safety standards.

Innovative Design, Quality Choice

From appearance to structure, the Octagon SWP-7.5 embodies innovative charm. Its compact and novel design not only saves installation space but also facilitates integration into various equipment. During operation, it runs smoothly and steadily, capable of frequently meeting gas usage demands, ensuring continuous and stable operation of equipment. Octagon is committed to providing high-quality products to its customers, and the SWP-7.5 Air Booster pump, with its outstanding performance and reliable quality, has become a premium choice in the industrial field.

Product Details

Model

Cylinder diameter

Boost ratio

Driving pressure (bar)

Driving interface size

Inlet Interface Size

Outlet Interface Size

Maximum flow rate L/min @PA=6bar

SWP-7.5

Φ160

7.5:1

3~8

ZG 1/2

ZG 1/2

ZG 1/2

310@PA=6

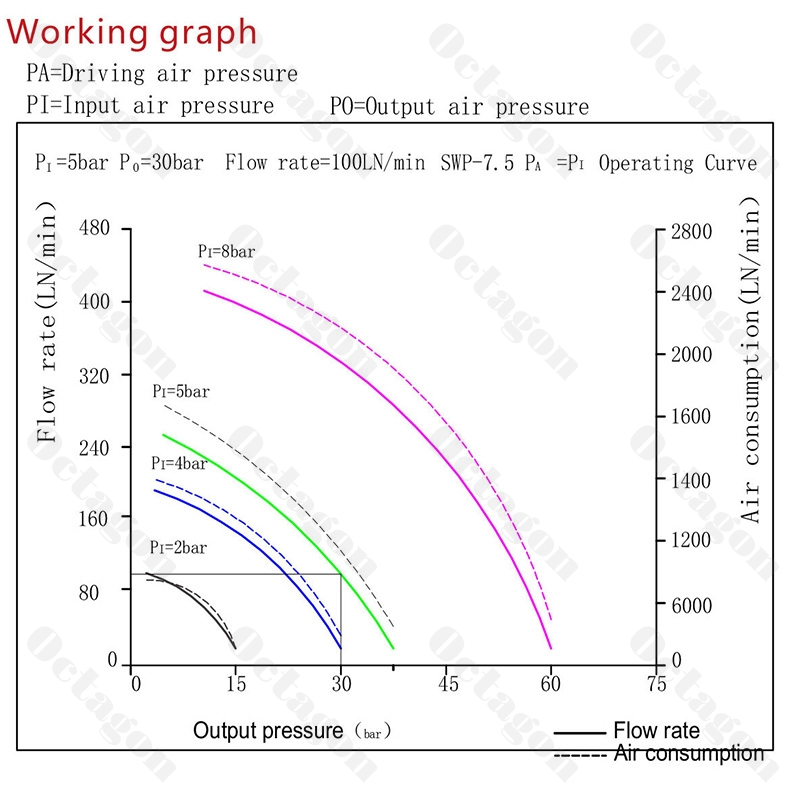

9d8b15ec191ace90ac114da44886961

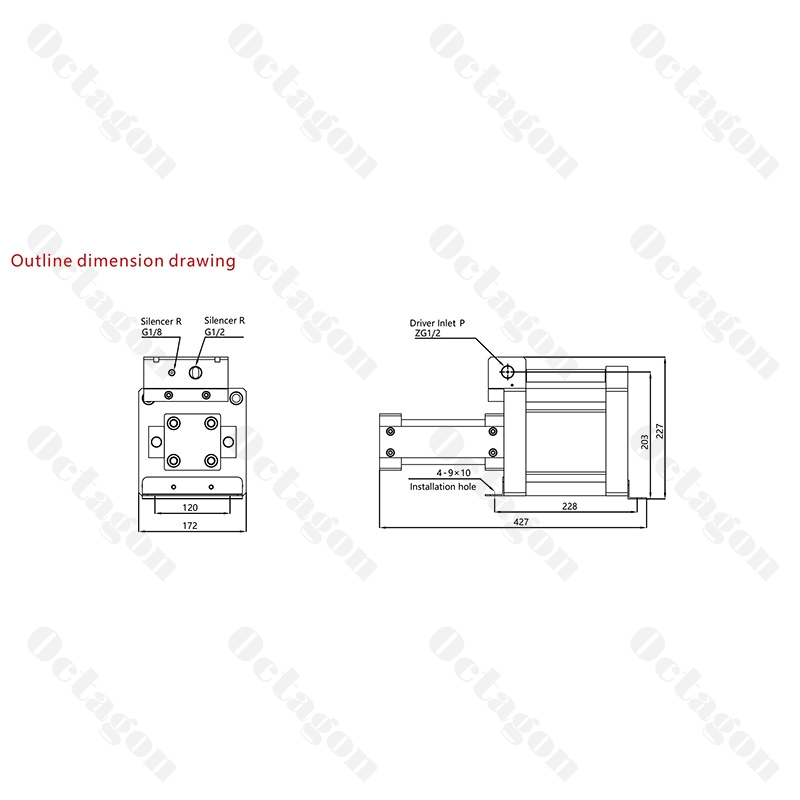

c8d0261ca376cebabe67869c117dd0b
