Octagon SWP-7.5-G Air Booster Pump

The Octagon SWP-7.5-G Air Booster pump is a highly efficient and environmentally friendly pneumatic device designed for applications requiring pressure enhancement. This product utilizes compressed air as its power source, eliminating the need for any external power supply. It can boost the inlet pressure to an outlet pressure that is 2-5 times higher. By simply adjusting the inlet pressure, users can easily achieve the desired output pressure to meet various operational requirements.

Model SWP-7.5-G

Good quality creates good products

Easy to operate

Excellent sealing

Stable structure

Product Features

Product Features: Convenient to Use: The SWP-7.5-G operates using compressed air, making it easy to use without the need for additional power sources, suitable for a wide range of industrial applications.

Automatic Pressure Maintenance: When the outlet pressure reaches the preset value, the booster pump automatically stops working, conserving energy. If the outlet pressure drops below the preset value, it automatically replenishes the pressure to maintain a constant level. This process incurs no additional energy consumption, making it both environmentally friendly and energy-saving.

Safe Operation: Driven by gas, the SWP-7.5-G operates without arcs or sparks, making it ideal for use in environments with flammable and explosive gases.

Innovative Design: This product features a compact and novel structure, ensuring smooth operation and a high frequency of gas usage, catering to modern industrial needs.

Application Scenarios

The SWP-7.5-G Air Booster pump is widely applicable across various industries, including but not limited to:

Chemical Industry: In chemical production processes, the need to boost gas pressure is common. The SWP-7.5-G provides a safe and stable pressure solution.

Oil and Gas: In the transportation and processing of oil and gas, the booster pump effectively enhances gas pressure, ensuring smooth fluid transfer.

Food and Beverage: In food processing and beverage production, the SWP-7.5-G can be used for gas transportation and packaging, ensuring product quality and safety.

Pharmaceutical Industry: During pharmaceutical manufacturing, the booster pump provides stable gas pressure, ensuring efficiency and safety in production processes.

Environmental Equipment: In waste gas treatment and environmental protection equipment, the SWP-7.5-G can be used to enhance gas pressure, ensuring effective treatment.

The Octagon SWP-7.5-G Air Booster pump is your ideal choice for pressure enhancement and energy conservation. Octagon is committed to providing high-quality pneumatic solutions to enhance your production efficiency and safety.

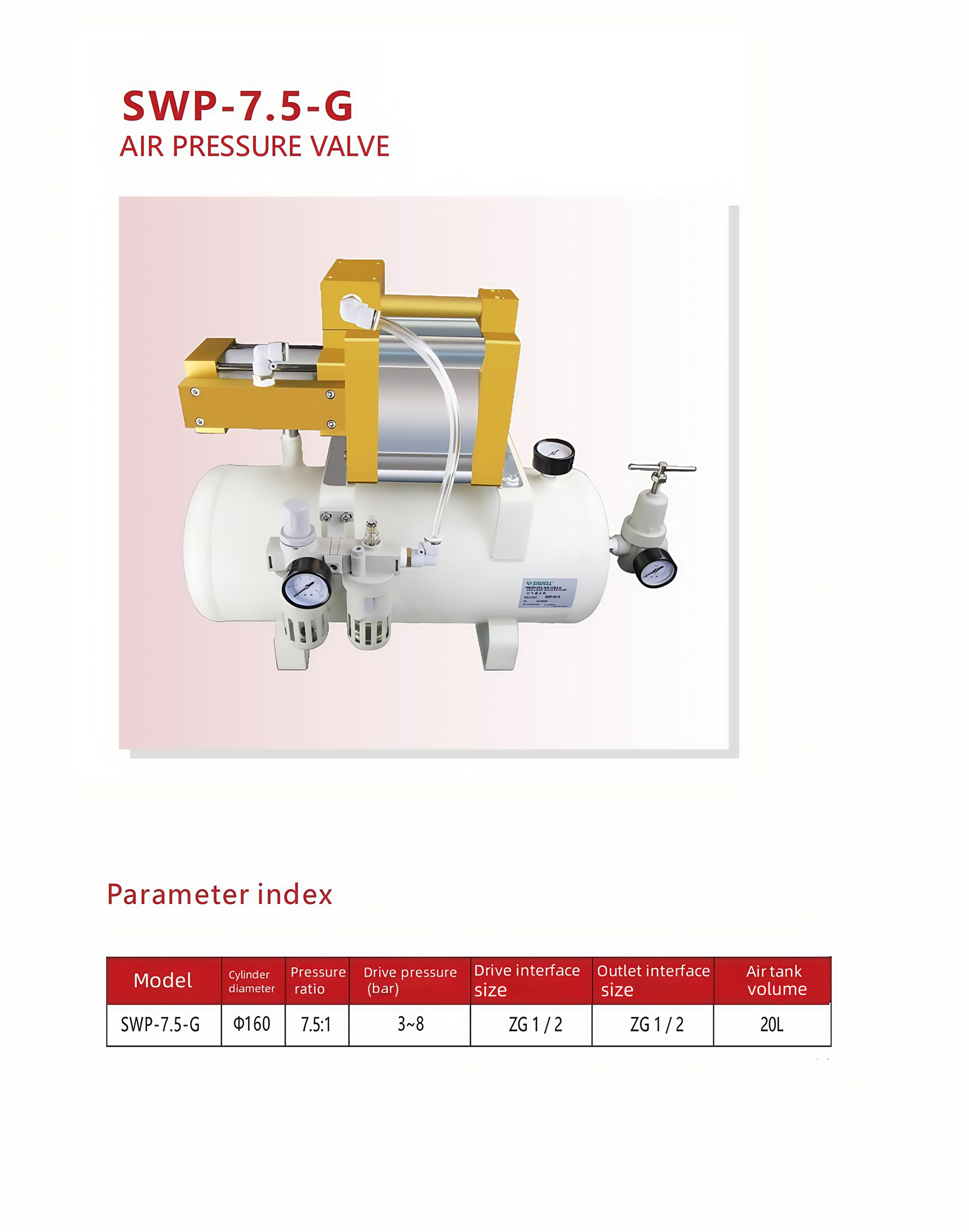

Product Details

Model	Cylinder diameter	Boost ratio	Driving pressure (bar)	Inlet Interface Size	Outlet Interface Size	Gas Tank Capacity
SWP-7.5-G	φ160	7.5:1	3~8	ZG 1/2	ZG 1/2	20L
