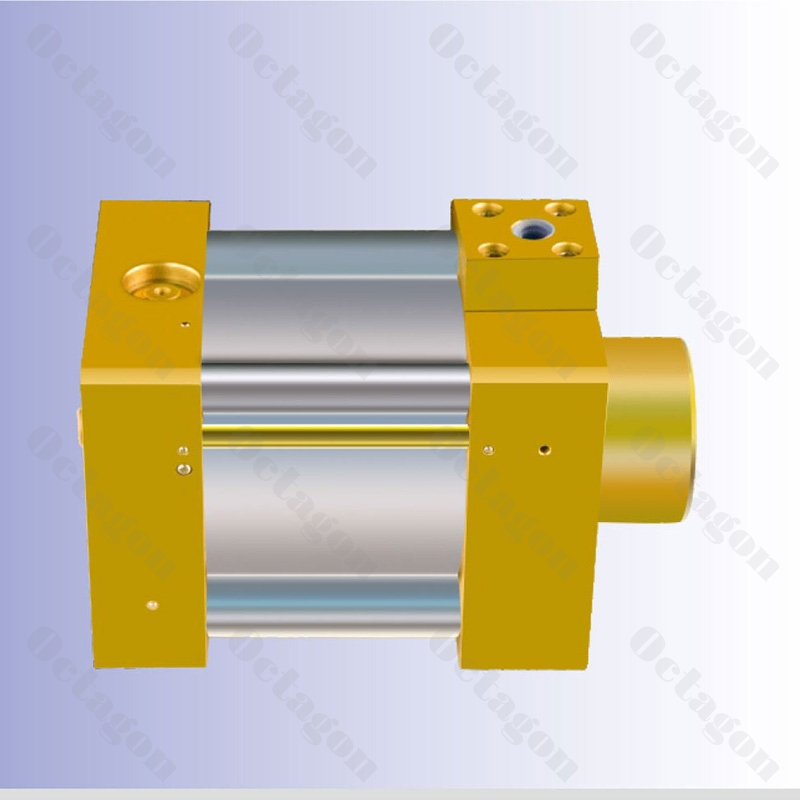

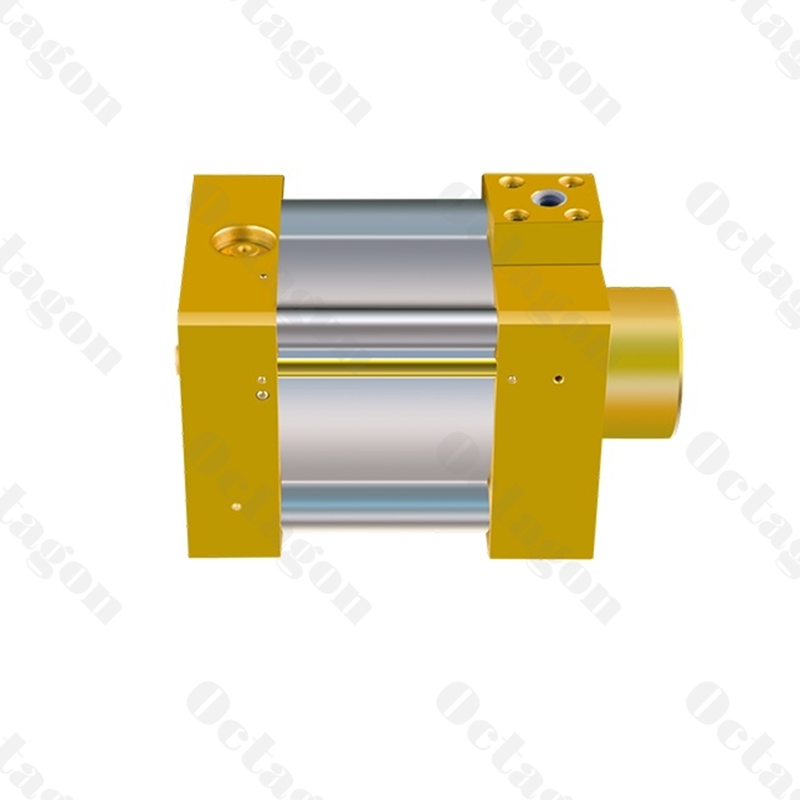

SWB-125S Single-Drive Gas-Liquid Booster Pump
Good quality creates good products
Easy to operate
Excellent sealing
Stable structure
Robust Design and Construction
The diameter of the driving piston is 125mm, providing substantial power for various applications. The gas drive part of the pump body is constructed entirely from aluminum alloy, which is both lightweight and durable. The surface of the pump is anodized, enhancing its resistance to wear and corrosion while ensuring an attractive appearance.
Quality Sealing System
To guarantee the longevity and reliability of the pump, the full set of seals is made from imported materials. This high-quality sealing system minimizes the risk of leaks and ensures optimal performance, making the SWB-125S suitable for demanding industrial environments.
Versatile Applications
The SWB-125S is particularly effective in valve testing scenarios, where it can clamp the power shaft and cylinder sleeve during the press-in and press-out processes. This capability is essential for controlling ground safety valves and underground safety valves, ensuring that these critical components operate safely and efficiently under pressure.
In addition to valve testing, the SWB-125S can be utilized in various industrial applications, including chemical processing and fluid transfer in the food and beverage sector, where precision and reliability are paramount.
Technical Parameters
Model |
Boost ratio |
Outlet pressurebar |
Single-Shot Discharge |
Interface size |
||
|
|
|
|
Drive port |
Inlet |
Outlet |
SWB-125S-10 |
10:1 |
80 |
62.8 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-17 |
17:1 |
136 |
35.3 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-25 |
25:1 |
200 |
24.5 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-39 |
39:1 |
312 |
15.7 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-61 |
61:7 |
488 |
10 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-80 |
80:1 |
640 |
7.7 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-108 |
108:1 |
864 |
5.6 |
ZG3/8 |
ZG1/2 |
ZG3/8 |
SWB-125S-156 |
156:1 |
1248 |
3.9 |
ZG3/8 |
ZG3/8 |
ZG3/8 |
