SWB - 160D: Octagon Power Boost
Good quality creates good products
Easy to operate
Excellent sealing
Stable structure
Automatic Cycling Mechanism
The flow direction of the liquid is controlled by check valves and directional control valves. As the driving piston reciprocates, the inlet and outlet valves alternately open and close, enabling continuous pressurization. When the output pressure balances with the driving pressure, the pump automatically stops; it restarts when the pressure drops or the driving pressure increases.

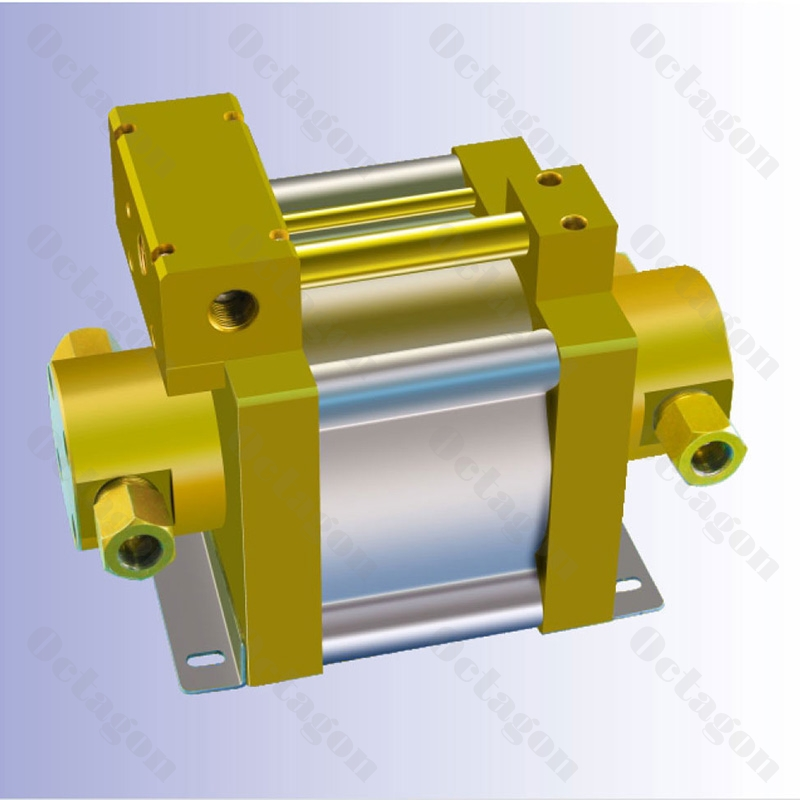

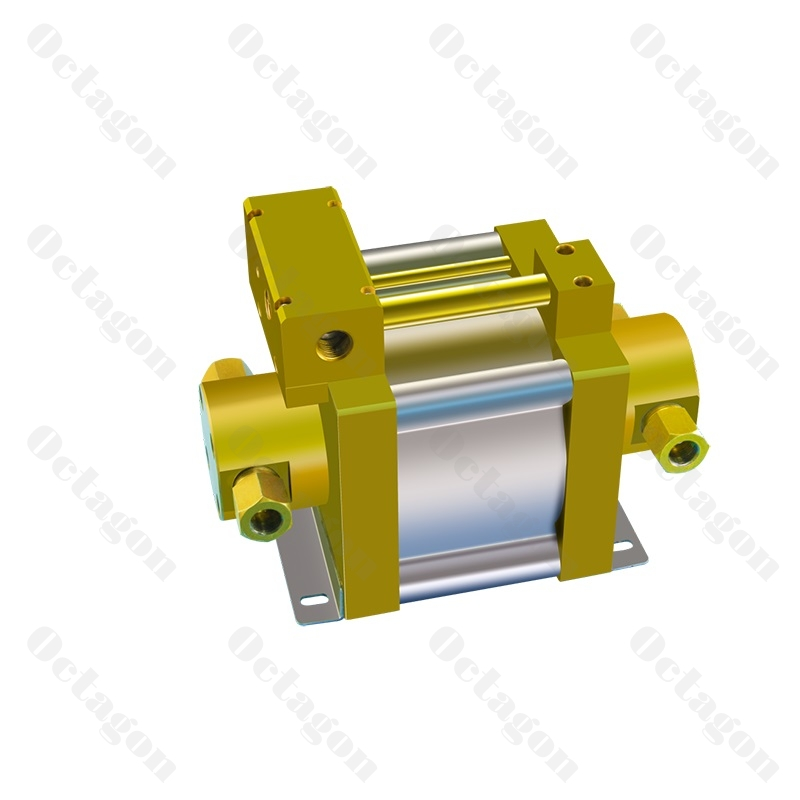

SWB-160D series pump is a single drive head double acting gas-liquid booster pump, its characteristic is the same as 160s series pump, but compared with the same specification pump, the pulse is small and its flow. The quantity is 50% higher than that of 160S single-acting pump.
Product Details
Model |
Boost ratio |
Outlet pressurebar |
Single - shot Discharge |
Interface size |
||
Drive port |
Inlet |
Outlet |
||||
SWB-160D-9 |
9:1 |
72 |
196.2 |
ZG1/2 |
ZG1/2 |
ZG1/2 |
SWB-160D-15 |
15:1 |
120 |
125.6 |
ZG1/2 |
ZG1/2 |
ZG1/2 |
SWB-160D-19 |
19:1 |
152 |
96 |
ZG1/2 |
ZG1/2 |
ZG1/2 |
SWB-160D-27 |
27:1 |
216 |
70.6 |
ZG1/2 |
ZG1/2 |
ZG1/2 |
SWB-160D-40 |
40:1 |
320 |
49 |
ZG1/2 |
ZG1/2 |
ZG1/2 |
SWB-160D-63 |
63:1 |
504 |
31.4 |
ZG1/2 |
ZG1/2 |
ZG3/8 |
SWB-160D-78 |
78:1 |
624 |
25.4 |
ZG1/2 |
ZG1/2 |
ZG3/8 |
SWB-160D-99 |
99:1 |
792 |
20 |
ZG1/2 |
ZG1/2 |
ZG3/8 |
SWB-160D-130 |
130:1 |
1040 |
15.2 |
ZG1/2 |
ZG1/2 |
ZG3/8 |
SWB-160D-175 |
175:1 |
1400 |
11.2 |
ZG1/2 |
ZG1/2 |
ZG3/8 |
SWB-160D-255 |
255:1 |
2040 |
7.8 |
ZG1/2 |
ZG3/8 |
M18*1.5 (Reverse thread connection) |
SWB-160D-400 |
400:1 |
3200 |
5 |
ZG1/2 |
ZG3/8 |
M18*1.5 (Reverse thread connection) |
